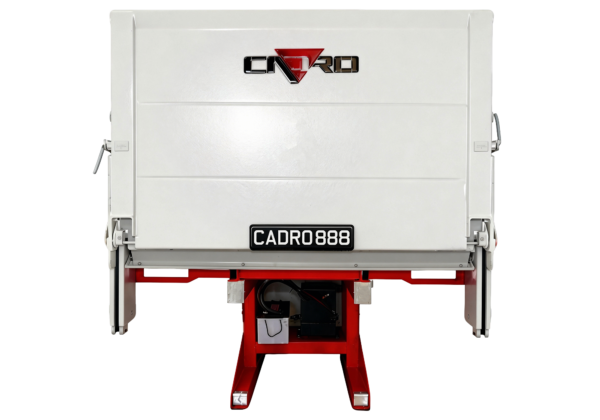

Dual-Rail Model Column Tail Lift :
- Lightweight High-Strength Design — High-strength steel plates form the key load-bearing components, delivering durability without excess vehicle weight.
- Zero-Tail Clearance Installation — A compact footprint requires minimal rear space, enabling zero-tail clearance mounting for enhanced vehicle versatility.
- Level-Loading Platform — The platform stays perfectly horizontal throughout every lift cycle, eliminating tilt angles and keeping cargo secure during loading.
- Integrated Safety Lock System — A safety lock bar automatically halts operation if cargo contacts the crossbeam during lifting, ensuring maximum protection for both load and equipment.
- Versatile Application — This tail lift fits a wide range of vehicles, from flatbed trucks to sanitation vehicles, delivering reliable performance across different operating environments.
- Custom Sizing Below 1000KG — Customization services adapt the lifting capacity to match specific fleet requirements (below 1000KG).
This product combines advanced engineering with user-centric design, delivering superior functionality and safety for your hydraulic tailgate needs.
Specifications：
| Model | CD-QBCZ06/100A |
| Platform size | 2000mm W×1100mm H (customizable to fit your vehicle body) |
| Lifting capacity | 600kg |
| Lifting Height | 1000mm |
| Working Pressure | 16MPa |
| Power Pack | 12V / 24V（DC） |
| Lifting speed | 80mm/s |
| Weight | 370kg |
